El sistema de montaje de techo de tejas solares tiene ganchos de techo de acero inoxidable de varios estilos y de alta calidad que son adecuados para la mayoría de los tipos de techos de tejas .
Material:
Aluminum Alloy 6005-T5Carga de nieve:
14kn/m²Carga de viento:
60m/sCertificación:
CE/SGSGarantía:
10 YearsVida de servicio:
25 YearsPuerto de embarque:
Xiamen

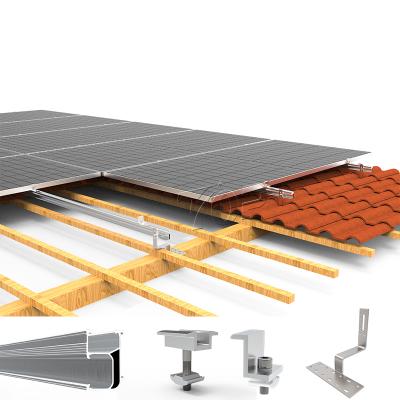

Solar Tile Roof Mounting System
.Overview
Solar tile roof mounting system has high-quality and various styles stainless steel roof hooks which are suitable for most types of tiled roofs. Top can install the solar mounting system quickly and safely and can enjoy the high-efficiency returns that solar energy brings to us.
The tile roof bracket kit can support simple installation solutions and our side-mounted or landscape tile interfaces can be used to cater for special mounting needs. For different roof types, we support to design different roof hooks for you to choose from.
The roof hook extenders are also part of the range for installations on high corrugation tiles such as spanish tiles/ roman tiles/curved tiles etc.
.Product Details
Product Name: | Tile Rooftop Solar Mounting Bracket , Spanish Tile Rooftop Mount |
Material: | Aluminum Alloy, Stainless Steel |
Max Wind Load: | 60m/s |
Max Snow Load: | 1.4KN/M² |
Module Orientation: | Portrait and Landscape |
Solar Components: | Solar Roof Hooks, Solar Rail, |
Warranty: | 10 Years |
Service Life: | 25 Years |
Certification: | SGS, CE |
|
|
1.Easy installation:
Our versatile and durable rail, module clamps and splice kit eliminates the need for onsite cutting. No need to drill or cut, installation is safe and reliable. Solar panels can be easily installed using our matching components.
2.Great Compatibility :
Our tile roof energy system is designed as a universal PV mounting system, ti is compatible with most of the major framed and frameless PV modules on the market. our aluminum alloy rail is our unique design,but it with many market solar hooks compatible.
3.Professional solution:
We carry out various simulation installation tests on the roof system,rigorous testing of real-size roof panels can ensure the safety, compliance and structural integrity of photovoltaic installations.
Planificación rápida y fácil en cinco pasos de sistemas de montaje de techos solares para techos inclinados y planos. Nos pondremos en contacto con usted lo antes posible y le daremos la mejor solución.
Paso 1: Su dirección
Paso 2: carga de viento, carga de nieve
Paso 3: tipo de techo, forma del techo y cubierta del techo
Paso 4: altura del edificio, inclinación del techo
Paso 5: Su mensaje de contacto
.Efecto de instalación
Paso 1 y Paso 2: instale el gancho para techo en el techo de tejas con el tornillo autorroscante.
Paso 3: Instale el riel de techo solar en el gancho del techo por el bloque.
Paso 4: Instalación completa del riel solar.
Paso 5 y Paso 6: Instale el panel solar en el riel solar mediante abrazaderas de módulo (abrazadera central solar y abrazadera final).
